Settings

Otii 3 Desktop App can be easily customized and parameterized to either look or operate as you choose.

1. Open Otii 3 Desktop App
2. Navigate to:
   • Windows & Ubuntu: File > Settings, or by pressing Ctrl-,
   • macOS:: Otii 3 > Settings, or by pressing ⌘-,

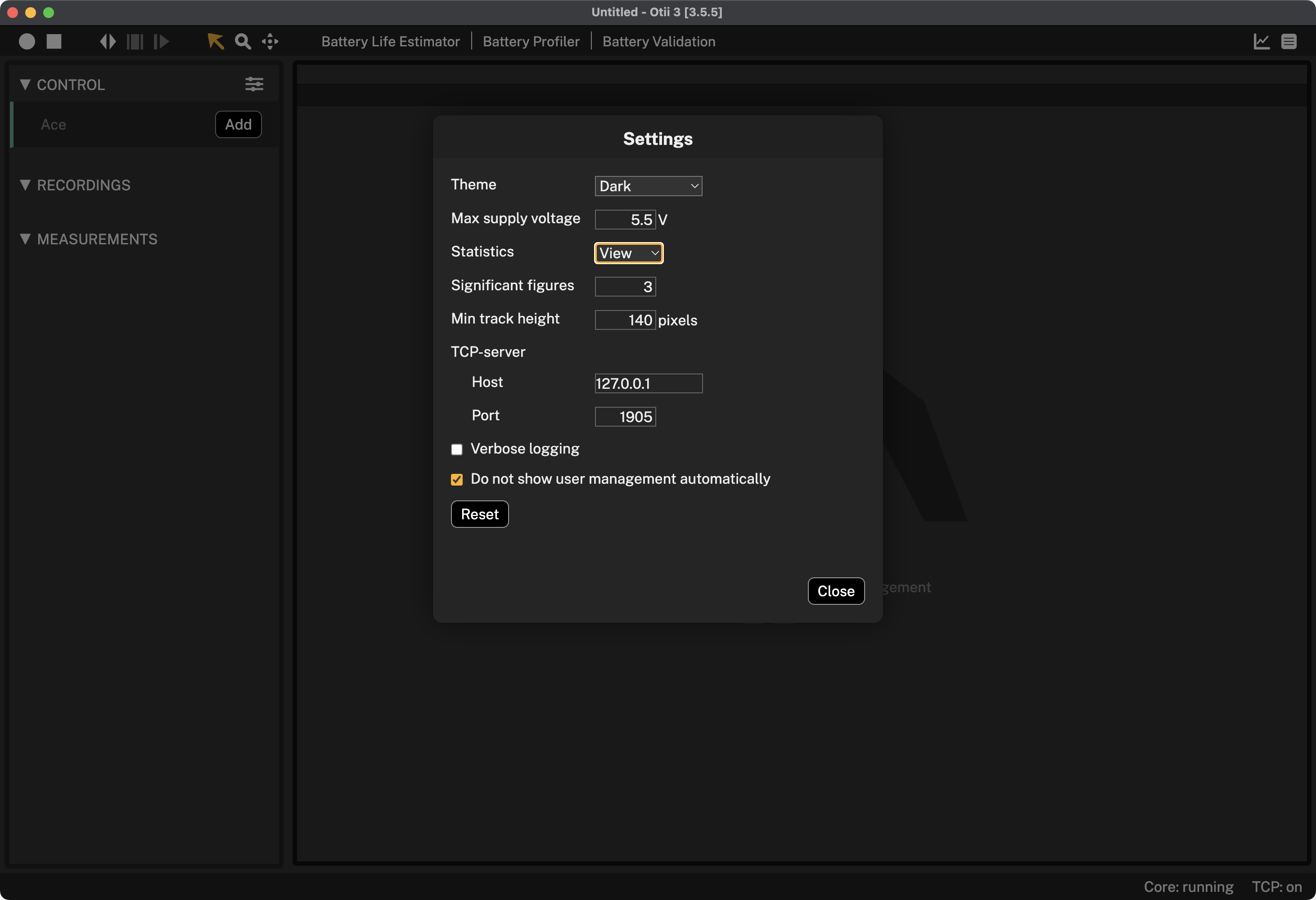

The settings window will be open:

This section allows to configure the following settings:

• Theme: Customize the interface theme as you like. Choose between Dark, Dark - Blue, Dark - Green, and Dark - Yellow.
• Max supply voltage: As a safety practice, set the maximum supply voltage based on the device under test (DUT) technical characteristics. The default voltage is 5.5V.
• Statistics: Specify the mode in which the statistics will be calculated for the ongoing project when a selection is not made:
  • Project: Statistics are calculated for the entire recording.
  • View: Statistics are calculated only for the displayed part of the recording.
• Significant figures: Affects the number of figures within the statistics and in the monitor.
• Min track height: Minimum height of the window measurement before start scrolling it
• Verbose logging: When enabled, add more information to the otii3.log to improve debugging.
• Do not show user management automatically: When it is not enabled, and you are logged in and have no reserved licenses, User Management will automatically open when a new project is started.
• Reset: Resets any settings made and assigns the default settings.
